GhostNet: More Features from Cheep Operations
JackYoon 2021. 12. 31. 15:34반응형
GhostNet: More Features from Cheep Operations
Abstract
- Convolutional Neural Networks (CNNs) Embedded Device에 배치하는 것은
Limited Memory
와Computation Resource
환경 때문에 어렵다. - 논문에서 간단한 연산으로 많은 Feature-map 추출할 수 있는 Ghost Module 제안한다. Intrinstic Feature-map의 집합을 기반으로, 저자는 간단한 연산을 Linear Transformation 연속에 적용하여 많은 Ghost Feature-map 만들어 낸다. 이 Feature-map은 본질적인 특징의 기초가 되는 정보를 드러낼 수 있다.
- 언급한 Ghost Module은
plug-and-play
요소로 장착되어, 기존 Convolutional Neural Network 발전 시킬 수 있다. - Ghost Module 쌓아서 Ghost bottleneck 설계하고, 이를 통해 가벼운 GhostNet 만들 수 있다.
Introduction
- 전통적인 CNNs은 만족스러운 정확도를 달성하기 위해 많은 Parameter와 Floating point operations (FLOPs)가 필요하다. 따라서 최근 Deep Neural Network 설계에 관한 경향은 Mobile device에 수행 가능하도록 효율적인 Network 구조를 연구하는 것이다.
- "Han"은 Nueral Network에서 중요하지 않은 Wegiht 가지를 치는 것을 제안했다. 그러나 이러한 방법들의 수행 능력은 그들이 baselines 잡은 pre-trained Network에 기반한다.

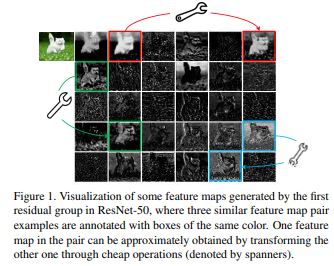

- 잘 학습된 Network의 풍부한 Feature-map 정보는 Input Data 이해를 보장한다. 하지만 Figure 1처럼 중복된 Feature-map (Ghost) 보는 상황이 발생한다. 이런 풍부한 Feature-map 피하는 것 대신에 저렴하게 이것들을 보강한다.
- Output Feature-map 크기 변경 없이, Ghost Mudle에선 필요한 Parameter 수와 연산 복잡도가 감소된다. 이러한 모듈에 입각하여 효율적인 구조인 GhostNet 제작하였다.
Approach
저자들은 적은 Fileter 사용하여 많은 Feature-map 만들어내는 Ghost Module 처음 도입하였다. 그리고 GhostNet 발전 시켰고, 매우 효율적이며 높은 성능을 낸다.

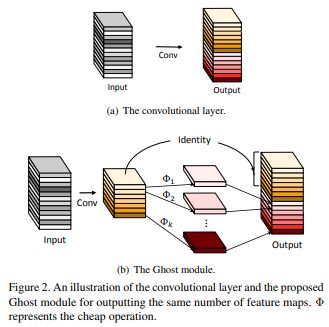

1. Ghost Module for More Features
- Deep Convolutional Neural Networks 다수의 Convolution 구성되어 있으며, 많은 연산을 동반한다. 비록 최신 연구가 CNNs의 작은 Conv Filter 사용하여 효율적인 구조를 만들려고 하지만 여전히 1 x 1 Convolution은 상당한
Memory
와FLOPs
차지한다. - Figure1 결과로 볼 때, Convolution Layer의 Output Feature-map은 풍부하고 서로 비슷한 성질을 갖고 있다. 여기에 중점을 두어 풍부한 Feature-map의 불필요한 부분 때문에 FLOPs와 Parameter가 늘어 난다고 생각했다
n
Feature-map에 대해 간단한 Linear 연산을 각 Feature에 적용하여 Ghost Feature 추출한다.
$y_{ij} = Φ_{i, j} (y'_i) \quad ∀ \quad i=1,...,m, \quad j=1, ...s$
- Linear 연산인
Φ
각각의 Channel에 대해 동작하며 일반적인 Convolution 연산 보다 연산이 간단하다.
Difference from Existing Methods
ⅰ1 x 1 Pointwise Convolution 사용하는 개체들과는 달리 Ghost Module은 Kernel_size
에 대해 Customizing
할 수 있다.
ⅱGhost Module은 일반적인 Convolution 사용하여 먼저 몇 개의 고유한 Feature-map 생성하고, 가벼운 Linear Operations
활용하여 Feature 확장하고 Channel 늘린다.
ⅲ Feature-map 처리하기 위해 이전에선 Depthwise, shift 연산을 사용한 반면, Ghost Module의 Linear Operations 큰 다양성을 가질 수 있다.
ⅳ instrinsic Feature-maps
보존하기 위해 identity mapping
은 Ghost Module의 Linear Transform
과 병렬로 연결된다.
Analysis on Complexities
- 이미 존재하는 구조에 Ghost Module 쉽게 추가하여 연산 비용을 줄이려고 노력했다.
- $n (s-1)$ Linear Operation은 다양한
shape
과parameter
취할 수 있다. 하지만 CPU/GPU 기반인online inference 측면에서 방해가 될 수 있다. - 따라서 (3 x 3, 5 x 5) 같은 size인 Linear Operation 제안한다.
2. Building Efficient CNNs

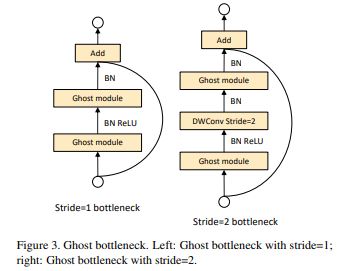

Ghost bottleneck(G-bneck)
도입하여 작은 CNNs 설계한다. 제안한 Ghost bottleneck 2 개의Ghost Modules
쌓아 올려 구성한다.- 첫 번째 Ghost Module은
Expansion Layer
사용하여 Channel 수를 늘린다. - 두 번째 Ghost Module은 Channel 수를 줄여
Shortcut path
맞춘다.

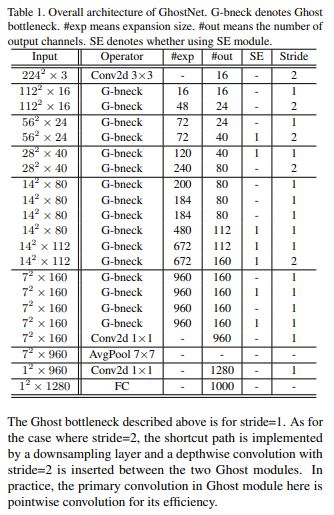

GhostNet
- 모든 Ghost bottlenecks
stride=1
적용한다. 각 stage 마지막에만stride=2
적용한다. squeeze and excite(SE)
module 또한 Ghost bottleneck의 Residual Layer에 적용한다.
Width Multiplier
- 비록 주어진 구조가 low latency 하고 accuracy 보장하지만 더 작고 빠르면서 높은 정확도를 같은 구조가 필요할 경우가 발생한다.
- 따라서
α
width multiplier 도입하여 각 채널에 적용하고 전체적인 Network의 width 수정한다.
Conclusion
- 기본적인 Ghost Module은 기존 Convolution Layer 쪼개어 두 부분으로 구성한다. 그리고 몇몇 Filter의 Instrinsic Featuer-maps 발생 시킨다.
- 따라서 제안한 Ghost Module 사용하여 GhostNet 만들었고
State-of-the-Art
달성했다.
from ..layers.conv_block import Conv2dBnAct, DepthwiseConvBn
from ..initialize import weight_initialize
import math
import torch
from torch import nn
class GhostNet_stem(nn.Module):
def __init__(self, in_channels, out_channels):
super(GhostNet_stem, self).__init__()
self.conv = Conv2dBnAct(in_channels=in_channels, out_channels=out_channels, kernel_size=3, stride=2)
def forward(self, input):
return self.conv(input)
class G_bneck(nn.Module):
def __init__(self, in_channels, kernel_size, out_channels, exp, stride, SE, ratio=2):
super(G_bneck, self).__init__()
self.stride=stride
self.use_se = SE
self.gmodule1 = G_module(in_channels=in_channels, kernel_size=1, out_channels=exp, stride=1)
self.gmodule2 = G_module(in_channels=exp, kernel_size=1, out_channels=out_channels, stride=1)
self.dconv = DepthwiseConvBn(in_channels=exp, kernel_size=kernel_size, stride=self.stride)
self.se_block = SE_Block(in_channels=exp ,reduction_ratio=16)
def forward(self, input):
output = self.gmodule1(input)
if self.stride == 2:
output = self.dconv(output)
if self.use_se:
output = self.se_block(output)
output = self.gmodule2(output)
return output
class G_module(nn.Module):
def __init__(self, in_channels, kernel_size, out_channels, stride, ratio=2):
super(G_module, self).__init__()
self.init_channels = math.ceil(out_channels//ratio)
self.conv = Conv2dBnAct(in_channels=in_channels, out_channels=self.init_channels, kernel_size=kernel_size, stride=stride)
self.dconv = DepthwiseConvBn(in_channels=self.init_channels, kernel_size=3, stride=stride)
def forward(self, input):
output = self.conv(input)
depth_output = self.dconv(output)
output = torch.cat([output, depth_output], axis=1)
return output
class _GhostNet(nn.Module):
def __init__(self, in_channels, classes):
super(_GhostNet, self).__init__()
self.stem_block = GhostNet_stem(in_channels, out_channels=16)
# config = in_channels, kernel_size, out_channels, exp, stride, SE
layer1 = [
[16, 3, 16, 16, 1, False], [16, 3, 24, 48, 2, False]
]
layer2 = [
[24, 3, 24, 72, 1, False], [24, 3, 40, 72, 2, True]
]
layer3 = [
[40, 3, 40, 120, 1, True], [40, 3, 80, 240, 2, False]
]
layer4 = [
[80, 3, 80, 200, 1, False], [80, 3, 80, 184, 1, False],
[80, 3, 80, 184, 1, False], [80, 3, 112, 480, 1, True],
[112, 3, 112, 672, 1, True], [112, 3, 160, 672, 2, True]
]
layer5 = [
[160, 3, 160, 960, 1, False], [160, 3, 160, 960, 1, True],
[160, 3, 160, 960, 1, False], [160, 3, 160, 960, 1, True]
]
self.layer1 = self.make_layer(layer1)
self.layer2 = self.make_layer(layer2)
self.layer3 = self.make_layer(layer3)
self.layer4 = self.make_layer(layer4)
self.layer5 = self.make_layer(layer5)
self.classification = nn.Sequential(
Conv2dBnAct(in_channels=160, out_channels=1280, kernel_size=1),
nn.AdaptiveAvgPool2d(1),
nn.Conv2d(1280, classes, 1)
)
def forward(self, input):
stem_out = self.stem_block(input)
s1 = self.layer1(stem_out)
s2 = self.layer2(s1)
s3 = self.layer3(s2)
s4 = self.layer4(s3)
s5 = self.layer5(s4)
pred = self.classification(s5)
b, c, _, _ = pred.size()
pred = pred.view(b, c)
stages = [s1, s2, s3, s4]
return {'stage':stages, 'pred':pred}
def make_layer(self, layers_configs):
layers = []
for i, k, o, e, s, se in layers_configs:
layers.append(G_bneck(
in_channels=i, kernel_size=k, out_channels=o, exp=e, stride=s, SE=se
))
return nn.Sequential(*layers)
def GhostNet(in_channels, classes=1000):
model = _GhostNet(in_channels=in_channels, classes=classes)
weight_initialize(model)
return model
if __name__ == '__main__':
model = GhostNet(in_channels=3, classes=1000)
model(torch.rand(1, 3, 224, 224))
